Door Lip Seal XMS

Door Lip Seal XMS

Selected variant

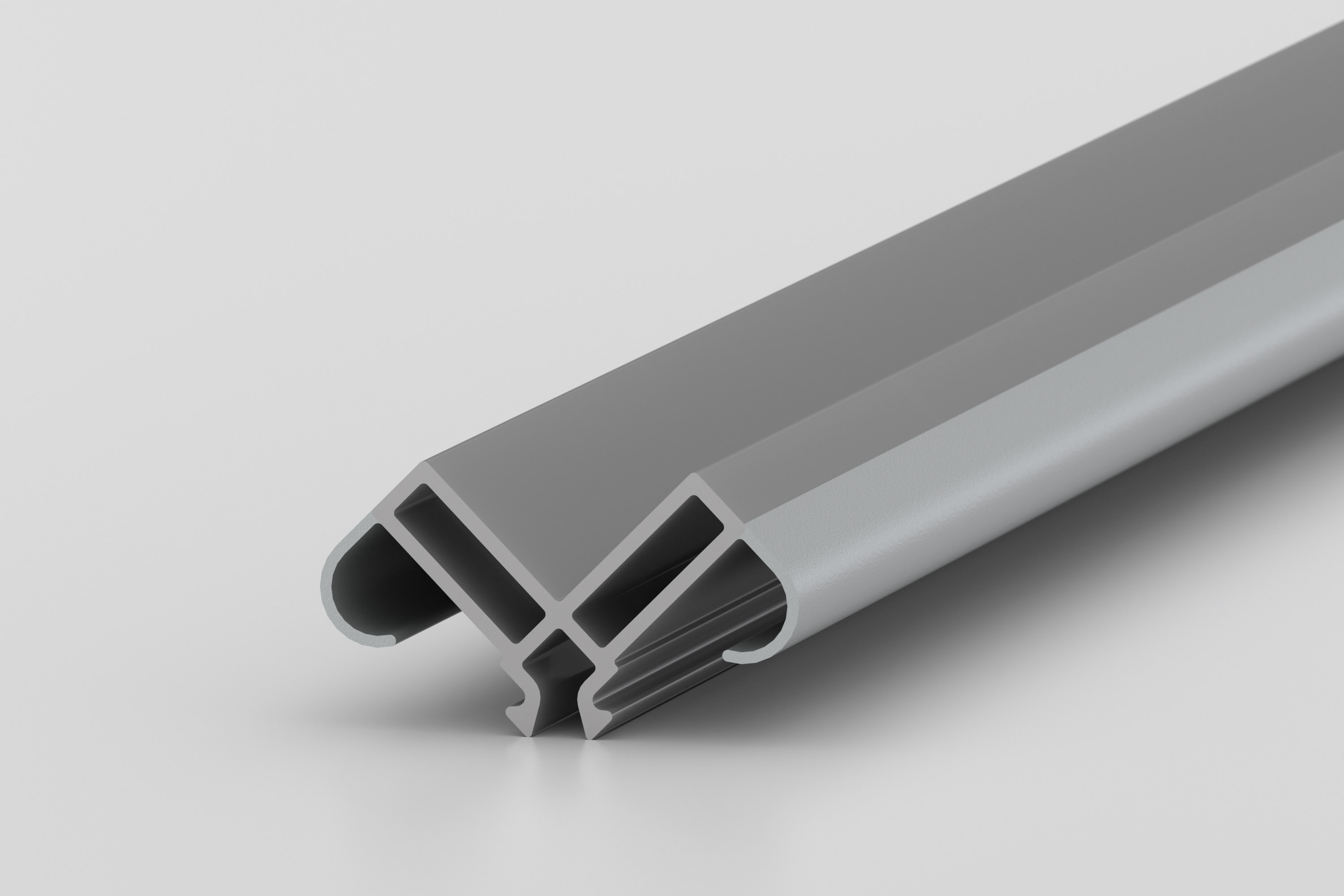

Door Lip Seal T1 - XMS, grey similar to RAL 7042 (0.0.649.88)
Door Lip Seal T1 - XMS, grey similar to RAL 7042
0.0.649.88
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.649.88
Lineline X
ESD-safeNo
Weightm = 34 g/m
Delivery unit1 pce., length 3000 mm
MaterialPP/TPE
Colourgrey similar to RAL 7042

Description

Door Lip Seals T fit into the 3.5 mm seal grooves located in the edges of the corresponding Line XMS profiles and act as door rabbets and seals.
Door Lip Seal T2 - XMS seals two doors at the same time when they meet in the corner at a Profile X 8 40x40 2N90 ­ XMS (0.0.649.49). By contrast, Door Lip Seal T1 - XMS is intended for sealing a single door.
Note: Door Lip Seal 8 - XMS (0.0.649.89) is used with Line XMS profiles with an 8 mm seal groove.

Assembly Instructions

Variants

Sort by

Door Lip Seal 8 - XMS, grey similar to RAL 7042

Door Lip Seal 8 - XMS, grey similar to RAL 7042

0.0.649.89
Groove type:  Door seal groove, 8 mmNumber of sealing surfaces:  1
Door Lip Seal T1 - XMS, grey similar to RAL 7042

Door Lip Seal T1 - XMS, grey similar to RAL 7042

0.0.649.88
Groove type:  Door seal groove, 3.5 mmNumber of sealing surfaces:  1
Door Lip Seal T2 - XMS, grey similar to RAL 7042

Door Lip Seal T2 - XMS, grey similar to RAL 7042

0.0.649.87
Groove type:  Door seal groove, 3.5 mmNumber of sealing surfaces:  2

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
35030190
eCl@ss 11.0
23360192
UNSPSC 9.0
30102315
eCl@ss 4.0
35030108
eCl@ss 4.1
35030108
eCl@ss 5.0
35030190
eCl@ss 5.1
35030190
eCl@ss 6.0.1
35030190
eCl@ss 7.1
35030190
UNSPSC 7.0
30102315
Customs tariff number
39169090
