Angle Bracket Cap

Selected variant
Angle Bracket Cap 6 60x60, black (0.0.419.66)
Angle Bracket Cap 6 60x60, black
0.0.419.66
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Lineline 6
ESD-safeNo
Weightm = 7 g
Delivery unit1 pce.
MaterialPA-GF
Colourblack

Description

Angle bracket caps tidy and securely cover the open side of item angle bracket sets.
The caps are available for the respective angle sizes and in various colors.

Variants

Sort by

Angle Bracket Cap 5 20x20, black

Angle Bracket Cap 5 20x20, black
Line:  5External dimension:  20x20Cap colour:  Black BlackWidth:  20 mmLength:  26.87
Angle Bracket Cap 5 40x40, black

Angle Bracket Cap 5 40x40, black
Line:  5External dimension:  40x40Cap colour:  Black BlackWidth:  20 mmLength:  55.15
Angle Bracket Cap 6 30x30, black

Angle Bracket Cap 6 30x30, black
Line:  6External dimension:  30x30Cap colour:  Black BlackWidth:  30 mmLength:  41
Angle Bracket Cap 6 60x60, black

Angle Bracket Cap 6 60x60, black
Line:  6External dimension:  60x60Cap colour:  Black BlackWidth:  30 mmLength:  83.5
Angle Bracket Cap 8 40x40, grey similar to RAL 7042

Angle Bracket Cap 8 40x40, grey similar to RAL 7042
Line:  8External dimension:  40x40Cap colour:  Grey GreyWidth:  40 mmLength:  55.68
Angle Bracket Cap 8 40x40, black

Angle Bracket Cap 8 40x40, black
Line:  8External dimension:  40x40Cap colour:  Black BlackWidth:  40 mmLength:  55.68
Angle Bracket Cap 8 80x80, grey similar to RAL 7042

Angle Bracket Cap 8 80x80, grey similar to RAL 7042
Line:  8External dimension:  80x80Cap colour:  Grey GreyWidth:  40 mmLength:  111.72
Angle Bracket Cap 8 80x80, black

Angle Bracket Cap 8 80x80, black
Line:  8External dimension:  80x80Cap colour:  Black BlackWidth:  40 mmLength:  111.72
Angle Bracket Cap 8 80x80x80, grey similar to RAL 7042

Angle Bracket Cap 8 80x80x80, grey similar to RAL 7042
Line:  8External dimension:  80x80Cap colour:  Grey GreyWidth:  80 mmLength:  112.4

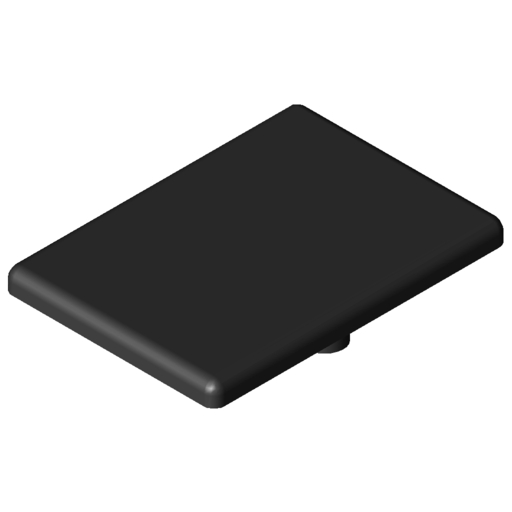

Angle Bracket Cap 8 80x80x80, black

Angle Bracket Cap 8 80x80x80, black
Line:  8External dimension:  80x80Cap colour:  Black BlackWidth:  80 mmLength:  112.4
Angle Bracket Cap 8 160x80, grey similar to RAL 7042

Angle Bracket Cap 8 160x80, grey similar to RAL 7042
Line:  8External dimension:  160x80Cap colour:  Grey GreyWidth:  40 mmLength:  178
Angle Bracket Cap 8 160x80, black

Angle Bracket Cap 8 160x80, black
Line:  8External dimension:  160x80Cap colour:  Black BlackWidth:  40 mmLength:  178
Angle Bracket Cap 12 60x60, black

Angle Bracket Cap 12 60x60, black
Line:  12External dimension:  60x60Cap colour:  Black BlackWidth:  60 mmLength:  83.2
Angle Bracket Cap 12 120x120, black

Angle Bracket Cap 12 120x120, black
Line:  12External dimension:  120x120Cap colour:  Black BlackWidth:  60 mmLength:  168.8
