Universal-Fastening Set

Selected variant
Universal-Butt-Fastening Set 6, bright zinc-plated (0.0.419.53)
Universal-Butt-Fastening Set 6, bright zinc-plated
0.0.419.53
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

2 Universal Fasteners 6, die-cast zinc
Button-Head Screw ISO 7380-M6x35, St
Hexagon Nut DIN 934 M6-I8I, St

Properties

Article number0.0.419.53
Lineline 6
Propertybright zinc-plated
ESD-safeYes
Weightm = 27 g
Delivery unit1 set
Tightening torque, bright zinc-platedMbz-p = 8 Nm

Description

The Universal-Butt-Fastening Sets can be used to connect the end faces of two profiles from the same Line. Universal-Butt-Fastening Sets should always be used in pairs.

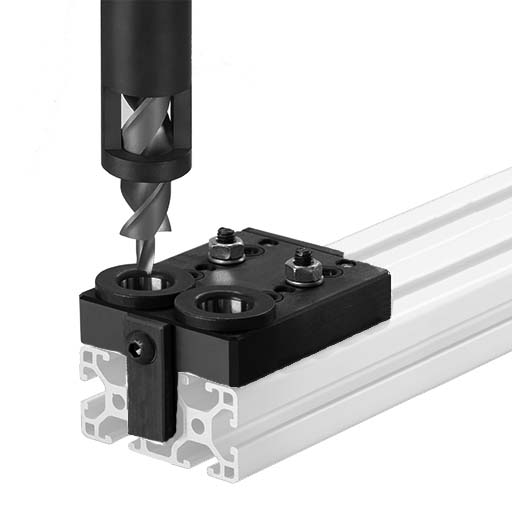

Depending on the profile size and load, several pairs may be necessary. Connection processing of the profiles is the same as for the Universal-Fastening Sets.

Assembly Instructions

Universal-Fastening Sets should always be used in pairs.

Variants

Sort by

Universal-Fastening Set 5, bright zinc-plated

Universal-Fastening Set 5, bright zinc-plated

0.0.370.27
Line:  5Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 5, stainless

Universal-Fastening Set 5, stainless

0.0.437.52
Line:  5Second line:  NoneMaterial:  Stainless steelConnection type:  Right angledModel:  One-sided
Universal-Fastening Set 6, bright zinc-plated

Universal-Fastening Set 6, bright zinc-plated

0.0.419.52
Line:  6Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 6, stainless

Universal-Fastening Set 6, stainless

0.0.441.74
Line:  6Second line:  NoneMaterial:  Stainless steelConnection type:  Right angledModel:  One-sided
Universal-Fastening Set 8, bright zinc-plated

Universal-Fastening Set 8, bright zinc-plated

0.0.026.92
Line:  8Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 8, stainless

Universal-Fastening Set 8, stainless

0.0.444.18
Line:  8Second line:  NoneMaterial:  Stainless steelConnection type:  Right angledModel:  One-sided
Universal-Fastening Set 8 St, bright zinc-plated

Universal-Fastening Set 8 St, bright zinc-plated

0.0.488.60
Line:  8Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 8 St, stainless

Universal-Fastening Set 8 St, stainless

0.0.488.51
Line:  8Second line:  NoneMaterial:  Stainless steelConnection type:  Right angledModel:  One-sided
Universal-Fastening Set 10, bright zinc-plated

Universal-Fastening Set 10, bright zinc-plated

0.0.632.07
Line:  10Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 12, bright zinc-plated

Universal-Fastening Set 12, bright zinc-plated

0.0.003.57
Line:  12Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Butt-Fastening Set 5, bright zinc-plated

Universal-Butt-Fastening Set 5, bright zinc-plated

0.0.370.32
Line:  5Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 5, stainless

Universal-Butt-Fastening Set 5, stainless

0.0.437.55
Line:  5Second line:  NoneMaterial:  Stainless steelConnection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 6, bright zinc-plated

Universal-Butt-Fastening Set 6, bright zinc-plated

0.0.419.53
Line:  6Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 6, stainless

Universal-Butt-Fastening Set 6, stainless

0.0.441.77
Line:  6Second line:  NoneMaterial:  Stainless steelConnection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 8, bright zinc-plated

Universal-Butt-Fastening Set 8, bright zinc-plated

0.0.265.46
Line:  8Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 8, stainless

Universal-Butt-Fastening Set 8, stainless

0.0.440.94
Line:  8Second line:  NoneMaterial:  Stainless steelConnection type:  ButtingModel:  One-sided
Universal-Butt-Fastening Set 10, bright zinc-plated

Universal-Butt-Fastening Set 10, bright zinc-plated

0.0.632.08
Line:  10Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  ButtingModel:  One-sided
Universal-Fastening Set 5 20, bright zinc-plated

Universal-Fastening Set 5 20, bright zinc-plated

0.0.686.83
Line:  5Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  Both sides
Universal-Fastening Set 6 30, bright zinc-plated

Universal-Fastening Set 6 30, bright zinc-plated

0.0.686.81
Line:  6Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  Both sides
Universal-Fastening Set 6 60, bright zinc-plated

Universal-Fastening Set 6 60, bright zinc-plated

0.0.686.82
Line:  6Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  Both sides
Universal-Fastening Set 8 40, bright zinc-plated

Universal-Fastening Set 8 40, bright zinc-plated

0.0.686.79
Line:  8Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  Both sides
Universal-Fastening Set 8 80, bright zinc-plated

Universal-Fastening Set 8 80, bright zinc-plated

0.0.686.80
Line:  8Second line:  NoneMaterial:  Steel (bright zinc-plated)Connection type:  Right angledModel:  Both sides
Universal-Fastening Set 8/5, bright zinc-plated

Universal-Fastening Set 8/5, bright zinc-plated

0.0.370.25
Line:  8Second line:  5Material:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set 5/8, bright zinc-plated

Universal-Fastening Set 5/8, bright zinc-plated

0.0.370.34
Line:  5Second line:  8Material:  Steel (bright zinc-plated)Connection type:  Right angledModel:  One-sided
Universal-Fastening Set (Profile St) 8 40, stainless

Universal-Fastening Set (Profile St) 8 40, stainless

0.0.601.03
Line:  8Second line:  NoneMaterial:  Stainless steelConnection type:  Right angledModel:  Both sides

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360290
eCl@ss 4.1
22041424
eCl@ss 5.1
23250311
UNSPSC 9.0
31162503
eCl@ss 4.0
22041424
eCl@ss 11.0
23360290
eCl@ss 6.0.1
23250311
eCl@ss 5.0
23250311
UNSPSC 7.0
31162503
eCl@ss 7.1
23360290
Customs tariff number
83024200
