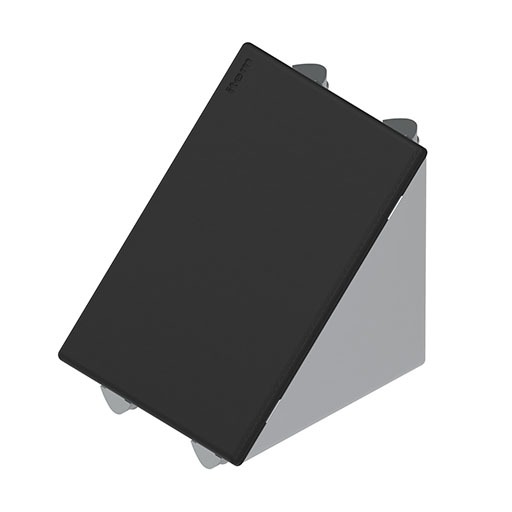

Angle Bracket Set

Angle Bracket Set


Show all 17 variants
On request
* Mandatory information

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

Angle Bracket 8 80x80 PA, black
4 Button-Head Screws ISO 7380-M8x18, St, bright zinc-plated
4 washers 9x20x2, St, bright zinc-plated
4 T-Slot Nuts 8 St M8, bright zinc-plated

Properties

Article number 0.0.647.05
Torque M = 10 Nm
Line line 8
ESD-safe No
Weight m = 177 g
Delivery unit 1 set

Description

The flexible machining-free profile fastening. Using the Angle Bracket ensures constructions can be easily reconfigured, as it does not need to be permanently fixed in one place.
Because Angle Brackets reinforce fastening points, they are particularly useful in applications that are likely to involve bending loads.
Angle Bracket Sets 8 PA include all the necessary fastening materials for joining two Profiles KH.
Angle Brackets PA come with removable anti-torsion features, meaning that attachments without a profile groove can also be screw-connected with ease.
The load-carrying capacity is to be checked to ensure both conditions are met.

Variants

Sort by

Baureihe:  5 Außenmaß:  20x20 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  5 Außenmaß:  40x40 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  6 Außenmaß:  30x30 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  6 Außenmaß:  60x60 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  8 Außenmaß:  40x40 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  8 Außenmaß:  40x40 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  8 Außenmaß:  40x40 Material:  Kunststoff (PA) Farbe:  schwarz schwarz Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  8 Außenmaß:  80x80 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  8 Außenmaß:  80x80 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  8 Außenmaß:  80x80 Material:  Kunststoff (PA) Farbe:  schwarz schwarz Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  8 Außenmaß:  160x80 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  X Außenmaß:  40x40 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  X Außenmaß:  80x80 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  10 Außenmaß:  50x50 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  10 Außenmaß:  100x100 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  grau grau
Baureihe:  12 Außenmaß:  60x60 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
Baureihe:  12 Außenmaß:  120x120 Material:  Zinkdruckguss (GD-Zn) Farbe:  Aluminium natur Aluminium natur Abdeckkappen Farbe:  schwarz schwarz
