Standard-Fastening Set

Standard-Fastening Set


Selected variant
Standard-Fastening Set 8, one-sided (0.0.672.99)
Standard-Fastening Set 8, one-sided
0.0.672.99
Show all
On request

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

Standard connecting plate 8, one-sided, St, bright zinc-plated
Special Button-Head Screw similar to ISO 7380 M8x20, St, bright zinc-plated

Properties

Article number 0.0.672.99
Line line 8
ESD-safe Yes
Weight m = 19 g
Delivery unit 1 set
Torque M = 25 Nm

Description

Compared to other fasteners, Standard Fasteners protrude into the groove to a minimal extent only. Standard-Fastening Set 8 features a double-sided anti-torsion feature as standard, but is also available in variants that have either a connecting plate that is shortened on one side or a compact centring aid (K). The variants leave one or both grooves of the aluminium profiles free.
Standard-Fastening Sets 8 are also available in an ESD-safe design to help dissipate electrostatic charges.
Standard-Fastening Set 8, one-sided from item connects two Line 8 profiles at a right angle to create a connection that is highly resistant to displacement and torsion. The asymmetrical connecting plate is made of bright zinc-plated steel and projects into a groove to ensure the fastener is correctly aligned so as to prevent torsion. The other groove is left free.
A thread needs to be tapped into the core bore of the first profile to install the fastener. The second profile requires an installation bore and is connected in a fixed position.
Please note the load-carrying capacity, which is different to that of Standard-Fastening Set 8.
Thanks to the asymmetrical anti-torsion feature on Standard-Fastening Set 8, one-sided, one groove is left free. This means profile frames can be built with one groove that is completely free to accommodate panel elements.
The modified connecting plate also allows for profiles to be offset so they can be connected in such a way that they have a flush fit when finished with caps.

Assembly Instructions

Installation with flush-mounted profile end face
Installation with flush-mounted profile cap

Variants

Sort by

Line:  5 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M5 Thread length:  12
Line:  5 Material:  Stainless steel Model:  Both sides Thread:  M5 Thread length:  12
Line:  5 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M5 Thread length:  12
Line:  6 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M6 Thread length:  14
Line:  6 Material:  Stainless steel Model:  Both sides Thread:  M6 Thread length:  14
Line:  6 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M6 Thread length:  14
Line:  6 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M6 Thread length:  14
Line:  6 Material:  Steel (bright zinc-plated) Model:  One-sided Thread:  M6 Thread length:  14
Line:  6 Material:  Plastic (POM) Model:  Compact Thread:  M6 Thread length:  14
Line:  8 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M8 Thread length:  20
Line:  8 Material:  Stainless steel Model:  Both sides Thread:  M8 Thread length:  20
Line:  8 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M8 Thread length:  20
Line:  8 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M8 Thread length:  20
Line:  8 Material:  Steel (bright zinc-plated) Model:  One-sided Thread:  M8 Thread length:  20
Line:  8 Material:  Steel (bright zinc-plated) Model:  One-sided Thread:  M8 Thread length:  20
Line:  8 Material:  Plastic (POM) Model:  Compact Thread:  M8 Thread length:  20
Line:  8 Material:  Plastic (POM) Model:  Compact Thread:  M8 Thread length:  20
Line:  10 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M10 Thread length:  25
Line:  12 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  M12 Thread length:  30

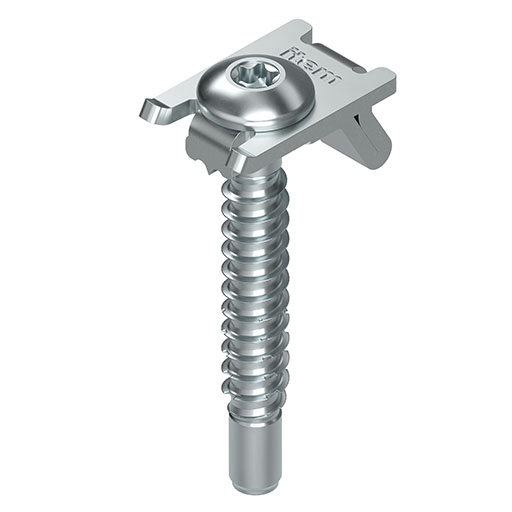

Line:  8 Material:  Steel (bright zinc-plated) Model:  Both sides Thread:  KH8 Thread length:  55
Line:  8 Material:  Stainless steel Model:  Both sides Thread:  M8 Thread length:  35

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360290
eCl@ss 5.0
23250311
eCl@ss 11.0
23360290
UNSPSC 9.0
31162503
eCl@ss 4.1
22041424
eCl@ss 5.1
23250311
eCl@ss 6.0.1
23250311
eCl@ss 4.0
22041424
UNSPSC 7.0
31162503
eCl@ss 7.1
23360290
Customs tariff number
73181568
