Motor Fastening Set I

Selected variant
Motor Fastening Set 8 40 D14 I, right (0.0.731.07)
Motor Fastening Set 8 40 D14 I, right
0.0.731.07
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

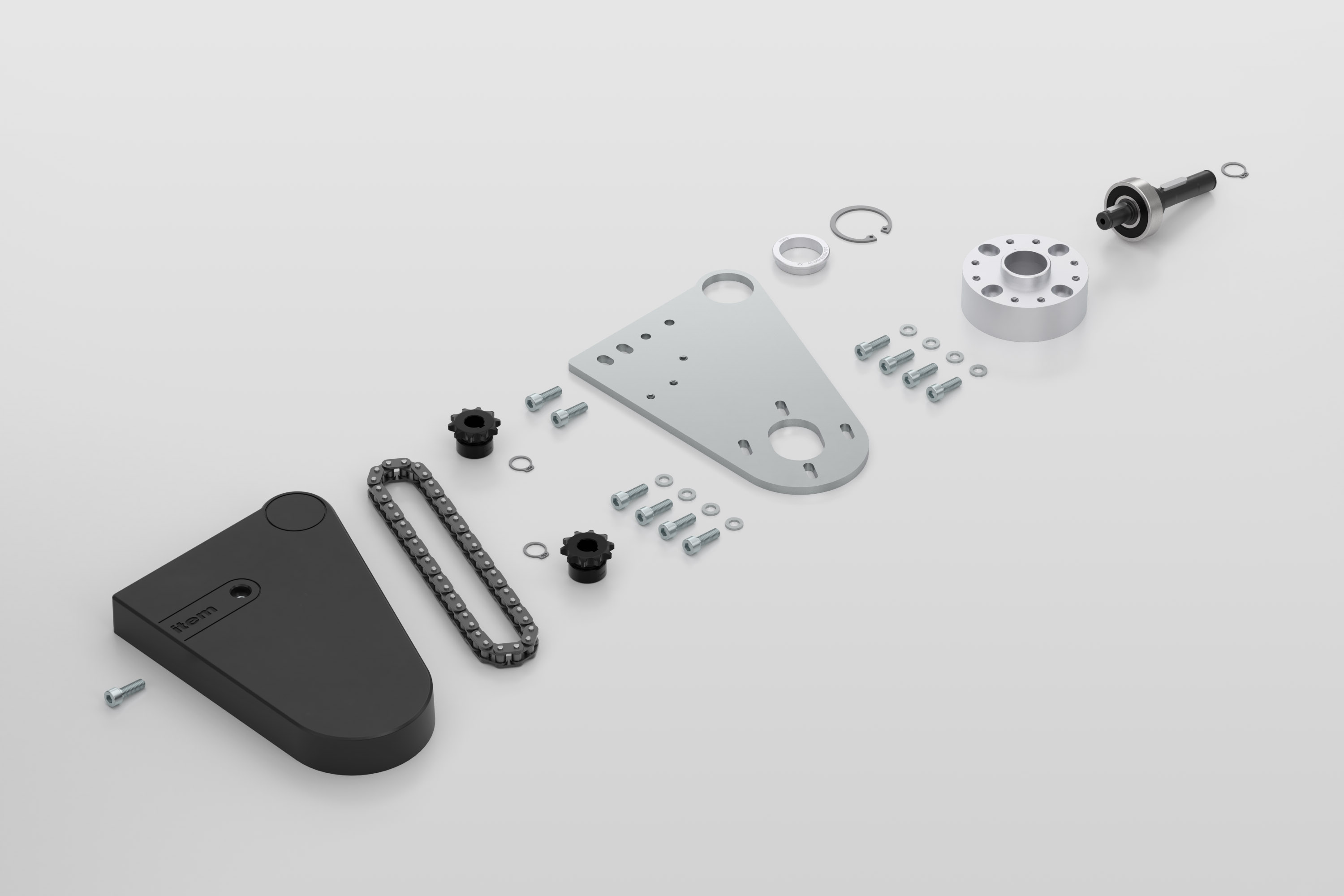

1 casing plate 8 40 I, St, bright zinc-plated
1 casing lid 8 40 I, right, PA, black
1 sprocket wheel set z10 d12, St
1 Chain 3/8" 1x44, St
1 centre ring D37/D33, Al
1 motor adapter D80x27 I, Al
1 adapter shaft set D14 I, St
1 circlip DIN 472-38x1.5, St
1 circlip DIN 471-14x1, St
2 circlips DIN 471-12x1, St
4 Hexagon Socket Head Cap Screws DIN 912-M6x25, St, stainless
7 Hexagon Socket Head Cap Screws DIN 912-M6x20, St, stainless
8 washers ISO 7092-6-200 HV, St, bright zinc-plated

Properties

Article number0.0.731.07
Lineline 8
LineConveyors
ESD-safeYes
Weightm = 1,42 kg
Delivery unit1 set

Description

Motor Fastening Set 8 40 D14 I, right connects an item Bevel Gearbox D14/D11 and Motor AC D11-180W to a conveyor belt with the item indirect drive. Drive Unit Set 8 40 (0.0.702.72) is used to fit the fastening set to the conveyor belt on the right-hand side in the direction of travel.
When using the indirect drive from item, the motor is located underneath the conveyor line. This enables you to build narrow conveyor lines that don’t have any contours protruding up into the transport level or to the side of the conveyor.
The motor fastening set for the item indirect drive transmits torque from the motor via a chain and two sprocket wheels to the drive pulley.
The chain and sprocket wheels must be checked regularly for wear. When necessary, they should be replaced using Chain 3/8" 1x44 (0.0.730.94) and Sprocket Wheel Set z10 d12 (0.0.730.99).

Assembly Instructions

The chain is supplied ready-lubricated and with wear and corrosion protection. To guarantee durability, it is advisable to regularly lubricate the chain with standard chain lubricants.
It is advisable to lubricate the chain after 100 hours of use and thereafter at regular intervals of 500 hours. Before applying new lubricant, use a clean cloth to remove old lubricant.

Variants

Sort by

Motor Fastening Set 8 40 D14 I, left

Motor Fastening Set 8 40 D14 I, left

0.0.731.06
Shaft diameter:  ø 14 mmMotor connection side:  Left
Motor Fastening Set 8 40 D14 I, right

Motor Fastening Set 8 40 D14 I, right

0.0.731.07
Shaft diameter:  ø 14 mmMotor connection side:  Right
Motor Fastening Set 8 40 D16 I, left

Motor Fastening Set 8 40 D16 I, left

0.0.731.08
Shaft diameter:  ø 16 mmMotor connection side:  Left
Motor Fastening Set 8 40 D16 I, right

Motor Fastening Set 8 40 D16 I, right

0.0.731.09
Shaft diameter:  ø 16 mmMotor connection side:  Right
