Telescopic Rail

Selected variant

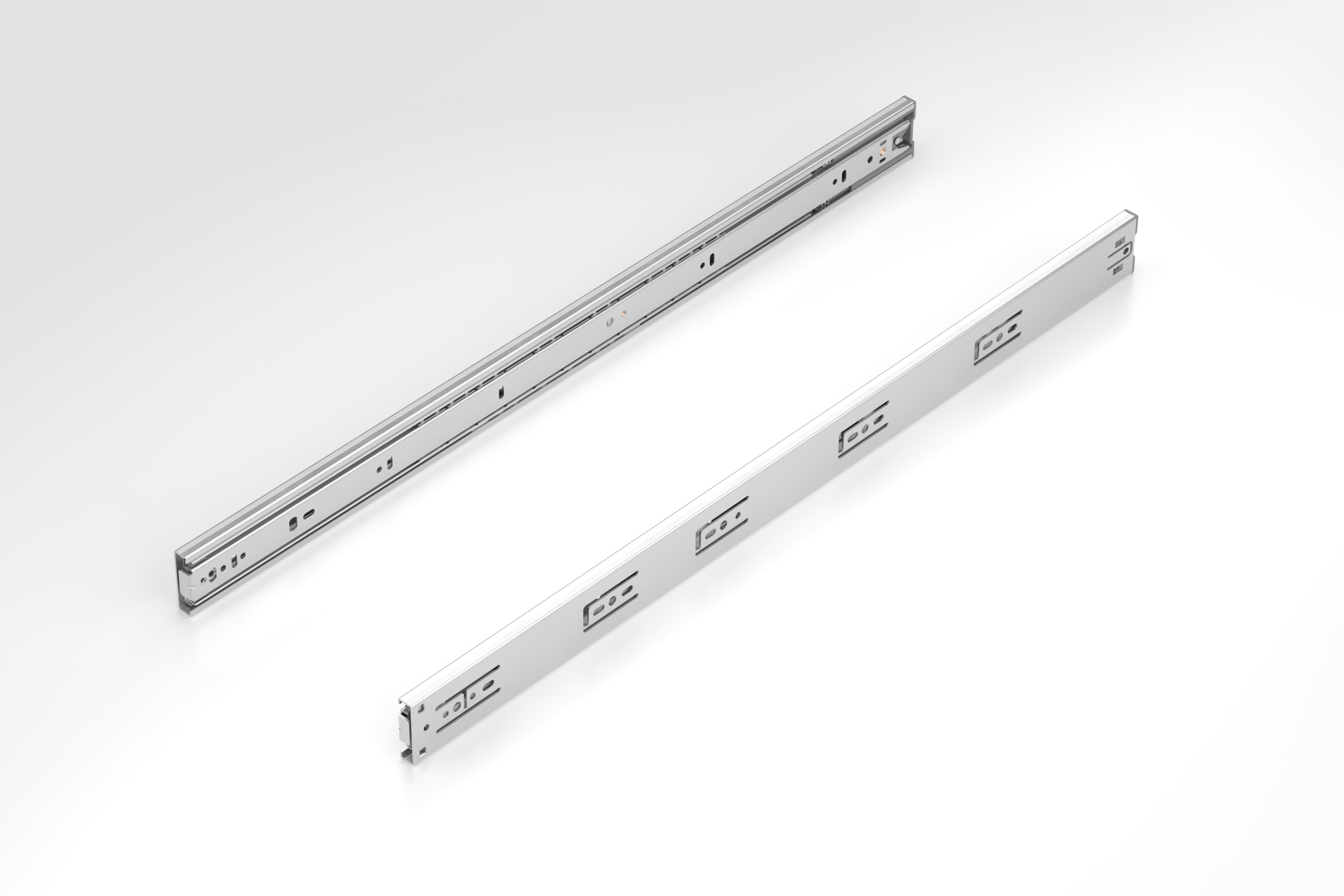

Telescopic Rail 12.7x45.7 L650 soft close, full extension, bright zinc-plated (0.0.729.91)
Telescopic Rail 12.7x45.7 L650 soft close, full extension, bright zinc-plated
0.0.729.91
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

2 Telescopic Rails 12.7x45.7 L650 soft close, full extension

Properties

Article number0.0.729.91
Lineline 5
Lineline 6
Lineline 8
Loadmax. 44 kg per pair
Propertybright zinc-plated
ESD-safeYes
Weightm = 1,969 kg
Ambient temperature (during operation)+10 °C … +40 °C
Delivery unit1 set
MaterialSt
Period of use50.000 cycles

Description

Telescopic Rail 12.7x45.7 L650 soft close, full extension exhibits a rail length of 650 mm and a pull-out length of 660 mm.
The soft close feature ensures drawers can be closed gently and securely. The integrated latching mechanism prevents unintentional extension of the rail when in the closed position.
Full-extension telescopic rails can be fastened to profiles with Line 5, 6 or 8 grooves and to panel elements. They can be used to create customised under-bench cabinets with drawers and ergonomic service trolleys with pull-out trays.
The fastening positions described in the installation guide must be used in order to achieve the maximum load values.

Assembly Instructions

These rails feature a front disconnect mechanism that ensures telescopic solutions such as trays and drawers can be installed and removed rapidly.
Thanks to their cam adjustment mechanism, you can make additional vertical adjustments to the application after installation.
