Drive Set KLE 6 60x60 (0.0.609.80)
Drive Set KLE 6 60x60
0.0.609.80
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.

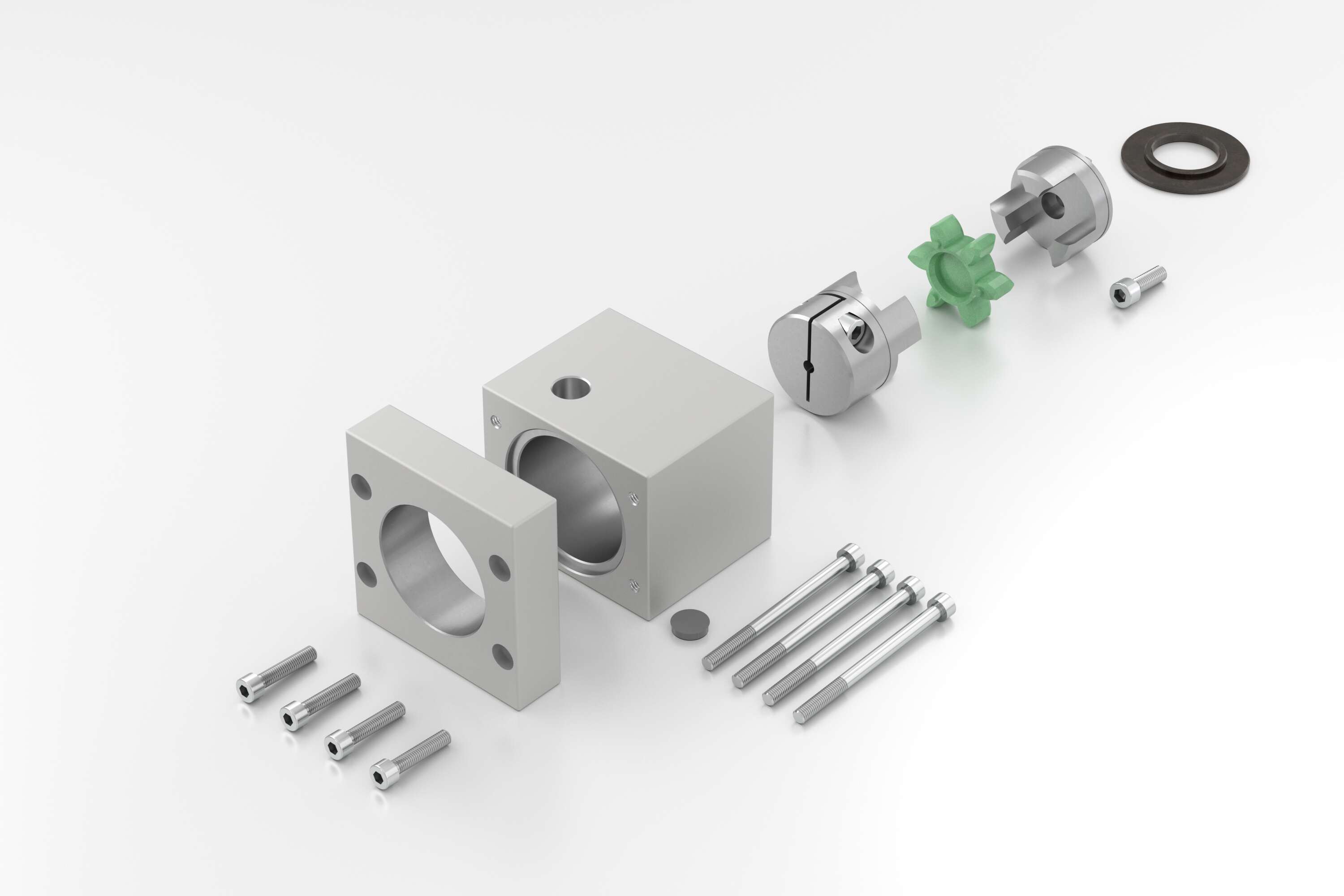

Scope of Delivery

Coupling housing KLE 6 60x60, Al
Adapter plate KLE 6 60x60, Al
Coupling half D40 KLE 6 60x60, Al
D40/D5 coupling half, Al – reborable up to max. ⌀20 mm
Coupling insert D40, PU, green
Centring piece D40 KLE 6 60x60, St
4 Hexagon Socket Head Cap Screws DIN 912-M5x25, St, bright zinc-plated
4 Hexagon Socket Head Cap Screws DIN 912-M5x65, St, bright zinc-plated
Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated
Tightening torque, coupling half D40 KLE 6 60x60, Al: 14 Nm
Tightening torque, clamping hub screw: 9.6 Nm

Properties

Article number0.0.609.80
Lineline 6
ESD-safeNo
Weightm = 911 g
Maximum permissible torque of coupling – drive sideMmax = 12 Nm
Efficiency. = 1
Delivery unit1 set

Description

The relevant Drive Set is attached to the Drive Unit for driving a KLE. This Drive Set consists of a Coupling Half for connection to the pulley, a Coupling Half for connection to the motor shaft, a Coupling Housing with Adapter Plate for connecting the motor to the housing of the Drive Unit, a Centring Piece and fasteners.
The prepared Coupling Half and the hub of the pulley are mechanically interlocked and bolted together. The elastic Coupling Insert transmits the drive torque free of play.
Transmission ratios of Drive Units KLE
The effective radius of the pulleys is
KLE 6 60x60: rW = 24.5 mm
KLE 8 80x80: rW = 33.5 mm
