Universal Mounting Plate 8 160x160 (0.0.709.54)
Universal Mounting Plate 8 160x160
0.0.709.54
Show all
On request
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number 0.0.709.54
Line line 8
ESD-safe Yes
Weight m = 1,4 kg
Delivery unit 1 pce.
Material Al

Description

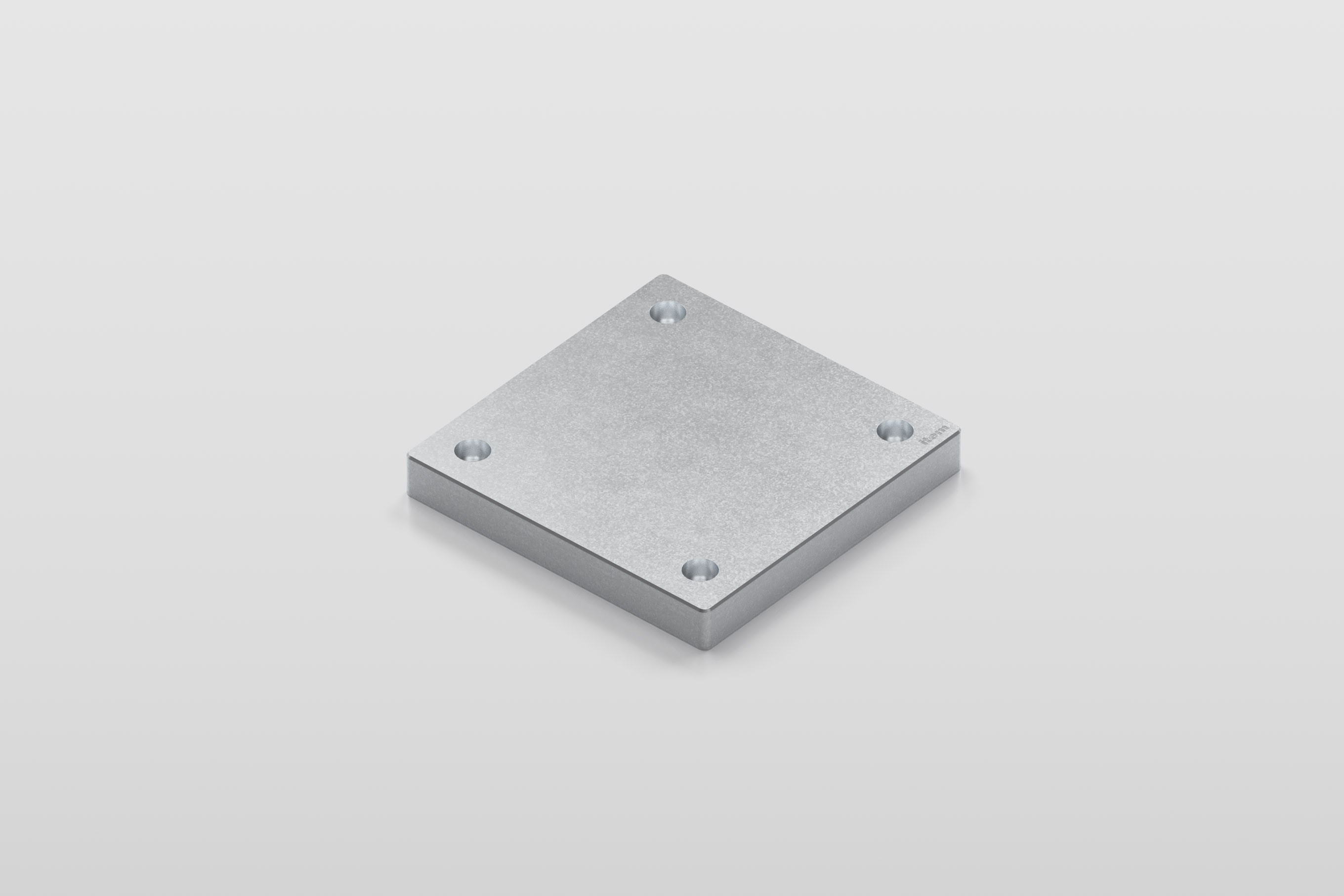

Working together! The item Mounting Plates 8 are perfect for integrating collaborative robots (cobots) into your working environment. Made of high-strength aluminium, the plates feature a pattern of holes for mounting on profiles and frames and come in versions that are predrilled for attaching widely used cobots and versions for custom machining.
Robot Mounting Plate 8 160x160 is prepared for the UR3e and UR5e cobots from Universal Robots and Fanuc CRX-5iA. The larger UR10e and UR16e models from Universal Robots, the CRX-10iA, CRX-10iA/L and CRX-20iA/L from Fanuc and the TM5, TM12, TM14, TM16 and TM20 models from Omron can be securely mounted on Robot Mounting Plate 8 200x200. The large central hole can be used for feeding through cables, if required.
Alternatively, you can drill your own custom pattern of holes in Universal Mounting Plates 8 160x160 and 200x200. This means you can also integrate other cobot and mechanical engineering applications into a bespoke solution.
Groove Plate X 8 40 (0.0.705.30) and Installation Column 8 160x160 K76 (0.0.663.39) offer ideal fastening surfaces. Detailed information on the appropriate fixings for various installation scenarios can be found on the product page for the Mounting Plates in the item Online Shop.

Variants

Sort by

Robot Mounting Plate 8 160x160

Robot Mounting Plate 8 160x160

0.0.709.26
Edge length X:  160 Edge length Y:  160 Height/depth Z:  20 Manufacturer:  Fanuc / Universal Robots 160x160 Robot model:  CRX-5iA, UR3e, UR5e
Robot Mounting Plate 8 200x200

Robot Mounting Plate 8 200x200

0.0.709.31
Edge length X:  200 Edge length Y:  200 Height/depth Z:  25 Manufacturer:  Fanuc / Omron / Universal Robots 200x200 Robot model:  CRX-10iA, CRX-10iA/L, CRX-20iA/L, TM5, TM12, TM14, TM16, UR10e, UR16e
Robot Mounting Plate 8 200x200 T1

Robot Mounting Plate 8 200x200 T1

0.0.719.07
Edge length X:  200 Edge length Y:  200 Height/depth Z:  25 Manufacturer:  Doosan Robotics / Kassow Robots 200x200 Robot model:  A-Serie, M-Serie, KR810, KR1018, KR1205, KR1410, KR1805
Robot Mounting Plate 8 240x200

Robot Mounting Plate 8 240x200

0.0.715.06
Edge length X:  240 Edge length Y:  200 Height/depth Z:  25 Manufacturer:  ABB 240x200 Robot model:  CRB 1100, CRB 15000-5, IRB 14050
Robot Mounting Plate 8 280x200

Robot Mounting Plate 8 280x200

0.0.721.89
Edge length X:  280 Edge length Y:  200 Height/depth Z:  25 Manufacturer:  ABB 280x200 Robot model:  CRB 15000-10, CRB 15000-12, IRB 920
Robot Mounting Plate 8 280x280

Robot Mounting Plate 8 280x280

0.0.709.45
Edge length X:  280 Edge length Y:  280 Height/depth Z:  25 Manufacturer:  KUKA / Universal Robots 280x280 Robot model:  LBR iiwa-Serie, LBR iisy-Serie, UR20, UR30
Universal Mounting Plate 8 160x160

Universal Mounting Plate 8 160x160

0.0.709.54
Edge length X:  160 Edge length Y:  160 Height/depth Z:  20 Manufacturer:  Universal flange dimension 160x160 Robot model:  -
Universal Mounting Plate 8 200x200

Universal Mounting Plate 8 200x200

0.0.709.32
Edge length X:  200 Edge length Y:  200 Height/depth Z:  25 Manufacturer:  Universal flange dimension 200x200 Robot model:  -
